Diagnostics Are Everything

A homeowner in Coquitlam noticed their fridge completely stopped cooling, though the lights inside stayed on. When we arrived to look at it, we traced the issue straight back to a failing display and interface control board assembly. It took some careful handling to get the old glass touch panel uninstalled and line up the new digital PCB layout correctly, but once the fresh components were wired in, the system recalibrated perfectly. Knocking out repairs like this keeps a solid appliance out of the landfill and saves our clients from the headache of buying a brand-new unit.

What the customer reported

A homeowner in Coquitlam noticed their refrigerator had stopped cooling. The interior lights still came on, which can fool people into thinking the fridge is fine and the problem is something simple like a tripped breaker. In this case power was clearly reaching the appliance, but the food wasn’t staying cold, and that combination is a useful clue when we’re deciding where to look first.

What the diagnosis found

When we arrived, we traced the problem back to the display and interface control board assembly. That’s the electronics behind the panel where you set the temperature. The record doesn’t name a brand for this fridge, and the layout of these assemblies varies a lot between makes and models, so the access steps depend on the unit. What we can say is that the board assembly was failing, and that it was the reason the cooling had stopped even though the lights worked.

The part and the repair

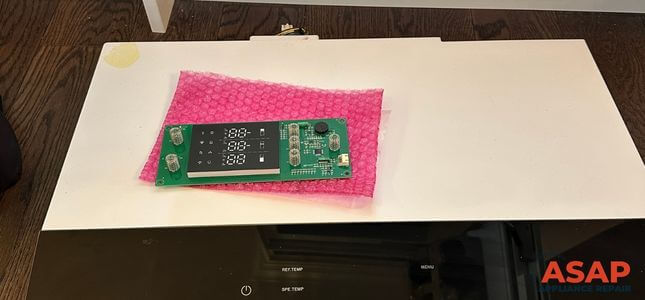

The old glass touch panel had to come out, and that took some careful handling. Glass panels like this can crack or scratch if they’re pried at the wrong angle, and the connections behind them are delicate. We then lined up the new digital circuit board correctly and wired the fresh components in. Once they were connected, the system recalibrated and the fridge went back to normal operation. The repair kept a solid appliance in service instead of sending it to the landfill, and saved the homeowner from buying a new unit.

How to avoid this fault

Clean touch panels with a slightly damp soft cloth and not by spraying cleaner directly onto them, because liquid that runs behind the glass can reach the electronics. Keeping the area around the fridge clear so it can breathe, and vacuuming dust off the condenser coils once or twice a year if your model has them exposed, also helps.

Why the control board matters

In many modern refrigerators, the control board does more than show a temperature. It reads the sensors, decides when the compressor and fans should run, and manages things like defrost cycles. If it fails or loses its signal, the compressor may not get the instruction to start, even though the light circuit, which is usually separate, keeps working. That’s why a fridge can have its lights on and still be warm inside. The exact setup depends on the make and model, and some fridges use a separate main board in addition to the display board, so a proper diagnosis matters more than guessing. If your refrigerator has stopped cooling but still has power, and the cause isn’t something obvious like a door that won’t seal, it’s worth getting the controls tested properly. ASAP Appliance Repair is based in Surrey and serves Coquitlam and the rest of Metro Vancouver.
