Dealing with a Frozen Refrigerator Evaporator

When a freezer starts building up thick ice around the internal panel, it usually means the automatic defrost system has failed. For this job, we had to systematically melt the heavy frost accumulation covering the evaporator coils using a portable steamer, taking care to protect the internal plastic liner and control components. Once the ice was fully cleared, we tested the defrost heater, thermostat, and timer assembly to locate the faulty component, replacing the failed part to ensure the unit can cycle properly again without choking up with frost. ASAP Appliance Repair is always ready to tackle these hidden component failures to keep your food fresh.

What the customer reported

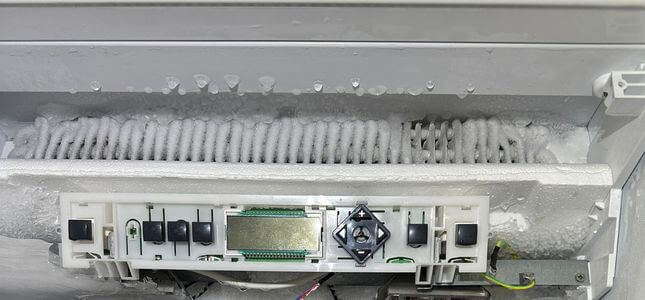

This job in Surrey was a freezer that had built up thick ice around the internal panel. Heavy frost like that is more than a cosmetic problem. As ice piles up around the parts that cool the freezer, air can’t move the way it should, and over time the appliance can struggle to hold its temperature. Thick ice in this spot usually points to the automatic defrost system, so that’s what we set out to confirm.

What the diagnosis found

In a typical frost-free refrigerator, a defrost heater melts frost off the evaporator coils on a schedule. A thermostat and a timer or control, depending on the model, decide when that happens and when it stops. If any one of them fails, the frost slowly accumulates until it chokes the coils. Our first job was to clear the ice so we could see what we were working with. Then we tested the defrost heater, the thermostat and the timer assembly to find which component had actually failed.

The part and the repair

We melted the heavy frost off the evaporator coils with a portable steamer, working carefully to protect the internal plastic liner and the control components nearby. Steam and plastic don’t mix well if you rush, so the clearing took patience. Once the ice was gone, the testing pointed us to the faulty component, and we replaced the failed part so the unit can cycle properly again without clogging up with frost. The record doesn’t say which of the three parts it was, so we won’t guess here.

How to avoid this fault

Don’t leave the freezer door ajar, and check that the gasket seals tightly, because warm, humid air getting in is what feeds frost build-up. Try not to pack the freezer so full that the vents inside are blocked.

Why the defrost system matters

A refrigerator cools by passing air over very cold evaporator coils. Moisture in that air freezes onto the coils as frost, and that’s normal. The defrost system exists to clear it away before it gets thick. Without it, the layer of ice grows until air can’t flow, and the fresh food section can warm up even though the freezer looks frozen solid. How the system is built varies by manufacturer and model, but the idea is the same across most frost-free units. Defrosting by hand, for example by chipping at the ice, is risky because the coils and lines can be punctured, and a quick melt only helps for a while if the failed part is still in there. Finding the part that stopped working is what keeps the problem from coming back. ASAP Appliance Repair is based in Surrey and handles these hidden component failures for homes across Metro Vancouver.
